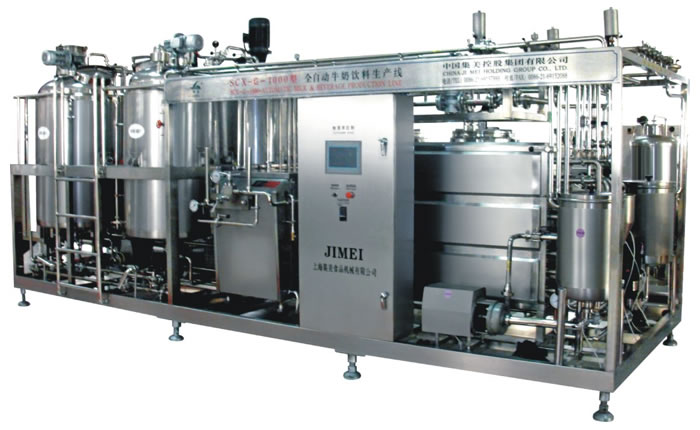

This Line adopts the most advanced technology, it combine water treatment system, chilling tank, mixing tank, Emulsification Pump, Homogenizer, Sterilizer, Fermentation Tank, Storage Tank, Filling Machine, Incubation Cabinet, Refrigerator, Water Chiller, Air Compressor, Steam Boiler etc as one of the multi-functional production line, from the system out can be directly to the filling machine. The system have feature of reasonable structure, beautiful shape, can greatly reduce the production area of space, a worker to operate production, low cost of maintenance, spare parts standardization, substitute localization. This combined production line can produce pasteurized milk, yogurt, ice ream, fruit juice, tea beverages, etc
All electrical appliances and accessories are provided by international famous brand, Stainless steel structure, conform to the hygiene standards.
Technical parameter
| Name model | SCX-200 (SCX-500) |
| Production capacity | 2000Litre/Shift (5000L/Shift) |
| Final Products | Drinking Milk, Yoghurt, Juice |
| Packaging | Plastic Pouch, Bottle, Cup, Doypack etc |
| Power | 380/220V, 50/60HZ, 35KW |
| Dimension | 2800*2000*2300(MM) |
| Production Area | 80-100 sq.m |
| Production Personal | 5-6 per shift |
| Size | 2800*2000*2500(MM) |
| Weight | 2400KGS |
