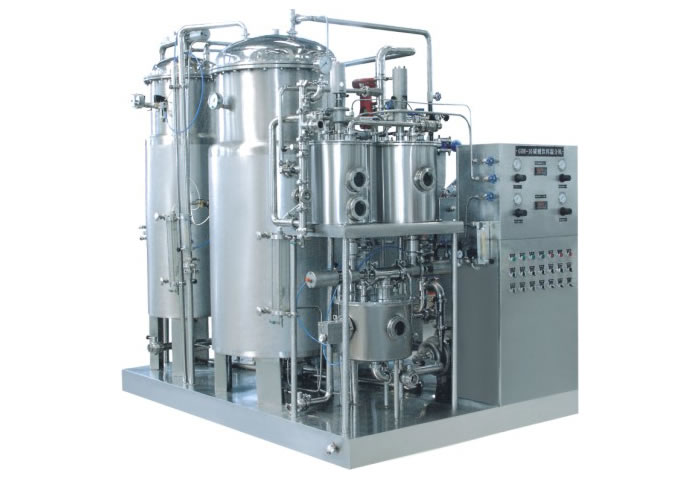

The machine is suitable for carbonated drinks and other gas beverage production, this machine and liquid mixture of parts contacted with low carbon high quality stainless steel to make, can meet different international food hygiene requirements. The PLC technology control pressure tank and liquid surface height, meet the abnormal situation immediately report to the police, while automatically end orders, whole structure compact equipment operation, stable and efficient, easy to operate, safe, is a drink production safety essential equipment.
Technical parameter
| Model | QHS-1000 | QHS-2000 | QHS-3000 | QHS-5000 |
| Production capacity | 1000L/H | 2000L/H | 3000L/H | 5000L/H |
| Syrup and water adjusting rate | 1:3-1:10 | 1:3-1:10 | 1:3-1:10 | 1:3-1:10 |
| Gas amount | >2.5 | >2.5 | >2.5 | >2.5 |
| mixing precision | <2 | <2 | <2 | <2 |
| Cooling water inlet temperature | 0-4 | 0-4 | 0-4 | 0-4 |
| Cooling water inlet pressure mpa | 0.15-0.25 | 0.15-0.25 | 0.15-0.25 | 0.15-0.25 |
| Syrup inlet temperature ℃ | 2-8 ℃ | 2-8 ℃ | 2-8 ℃ | 2-8 ℃ |
| Syrup inlet pressure mpa | 0.1-0.2 | 0.1-0.2 | 0.1-0.25 | 0.1-0.3 |
| Inlet pressure of carbon dioxide mpa | 0.7-0.8 | 0.7-0.8 | 0.7-0.82 | 0.7-0.82 |
| Purity of carbon dioxide % | 99.9 | 99.9 | 99.9 | 99.9 |
| Working pressure of storage tank mpa | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 | 0.45-0.55 |
| Motor power | 2.2 | 3.5 | 5.9 | 6.3 |
| Size | 1500*1000*2000 | 1600*1600*2100 | 21500*1700*2300 | 2300*1850*2450 |
| Weight kg | 1200 | 1350 | 1500 | 1950 |
