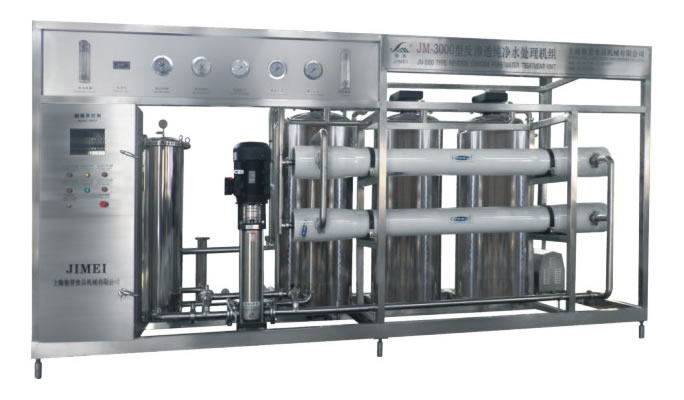

Reverse osmosis purification system for pure water

This system adopts stainless steel sand filter, active carbon filter effectively to remove big impure particles and suspending matters, improve RO membrane water inputting index, effectively remove the smell and rest chlorine of the original water, and improve the taste of water quality. The main machine adopts American high effective low-pressure compound film, with single film salt removing degree up to 99%.The high low-pressure protection imported form Korea ensures the breakdown low to 0%, with the outputting water up to national pure water standard.RO system (including: raw water pump, sand filter, active carbon filter, chemical doser, water softener, micro filter, reverse osmosis system, back washing system, sterilization , water tank and fittings).

Technical parameter

Model		RO-1000	RO-3000	RO-5000	RO-10000
Process capacity(t/h)		1000	3000	500	10000
Resource water pump model		CHL2-40	CHL8-40	CHL8-50	CHL16-40
Mechanic filter		400×1500	600×1500	800×1500	1200×1500
Active carbon adsorber		400×1500	600×1500	800×1500	1200×1500
Medicine adding equipment	Measuring pump	American P026
Medicine adding equipment	Medicine adding box	40L PEBUcket
Concise filter	Filter core spec fication	65×500	65×750	65×750	65×750
Concise filter	Filter core number	5	5	7	7
Anfi-filterationequipment(including high pressure pump, RO film, film shell, controlling box, pressure applicance, flow appilcace, high-low pressure switch etc.)
Ro cleanigequipment(including cleaning pump and cleaning box etc.)
Size (anit-filteration part)	Length	2600	2600	2600	3600
	Width	700	700	900	900
	Height	1900	2000	2000	2000
