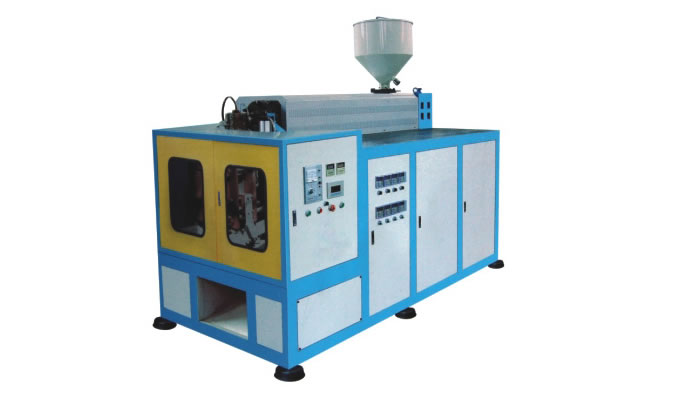

Description Of The Product
Adopt automatic design. The energy consumption is 40% less than hydro-dynamically operated, with no pollution of leading.
The design of accessory and component is deft and speed in performance
PLC control the action routine
Operated easily .It is suitable for the hollow product with in 5000ml
Two extruders can be working together according to the customers
Technical parameter
| Type | CSD-EB-1 CSD-EB-1 Dynamical Series | ||
| Specification | CSD-EB45-1 | CSD-EB55-1 | CSD-EB65-1 |
| Screw diameter | 45 | 55 | 65 |
| Max volume of Product | 1 | 2 | 3 |
| Suitable raw material | PE, PP.PVC | PE, PP.PVC | PE, PP.PVC |
| Screw speed(rpm) | 20-60 | 20-60 | 20-90 |
| Max plasticzing | 25 | 30 | 50 |
| Scerw L/D ratio | 25 | 25 | 25 |
| Machine barrel heating | 3 | 4 | 4 |
| Machine barrel heating | 6 | 6 | 16 |
| Die heating zone | 2 | 2 | 3 |
| Die heating power(kw) | 3 | 3 | 5 |
| Extruder power(kw) | 7.5 | 11 | 18.5 |
| Clamping force (kn) | 30 | 30 | 30 |
| Machine weight(kg) | 1800 | 2100 | 2500 |
| Machine dimensions | 3000x1320x1650 | 300x1320x1650 | 300x1320x1650 |
