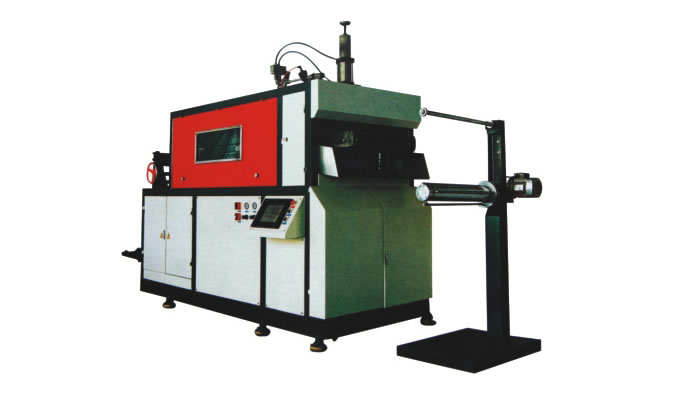

Auto plastic cup thermoforming machine

Description Of The Product
Plastic thermoforming machine is a combination of mechanical, electrical and pneumatic components , and the whole system was controlled by a micro PLC, which can be operated in man-interface. It combines the material sending, heating, forming and cutting into one process. It has three operation models. "manual", "semi-automatic" and "automatic".
It is suitable to form BOPS , HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes , dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, injection trays, oral liquids trays etc.

Technical parameter

Model	HSC -660A	HSC -660C
Maximum forming area﹙mm﹚	250x580
Maximum forming depth﹙mm﹚	120	120
Maximum width range of sheet﹙mm﹚	300-660	300-660
Thickness range of sheet﹙mm﹚	0.2-2.5	0.2-2.5]
Maximum sheet roller diameter﹙mm﹚	710	710
Air pressure﹙Mpa﹚	0.7	0.7
Water consumption﹙liter/min﹚	10	10
Air consuption﹙liter/min﹚	2000	2000
Production speed﹙cycle/min﹚	35	35
Power﹙v﹚	380±10%	380±10%
Heating motor power﹙kw﹚	38	38
Main motor power﹙kw﹚	4	4
Feeding motor power﹙kw﹚	2.2	2.2
Rewinding motor power﹙kw﹚	0.55	0.55
Weight﹙kg﹚	4000	4500
Main size﹙mm﹚	3300x1650x2250	3300x1650x2250
Rewinder size﹙mm﹚	1250x800x1900	1800x1500x1850
Cutting size﹙mm﹚		1100x1350x1350
