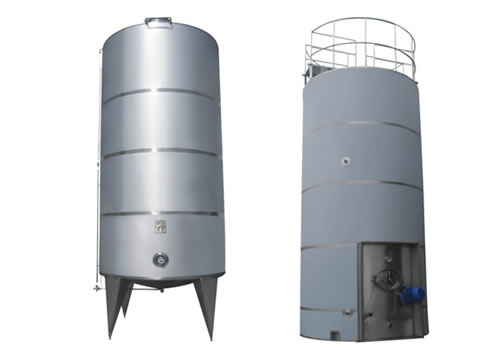

Outdoor milk tank (insulated)

Technical explanation
1. Tank body materials
Completely made of SUS304-2B stainless steel, internal bladderδ=3mm, external shellδ=2mm

2. Tank body form
Vertical cylinder, taper top, with taper of 15o;inclined bottom with taper of 5o. A base is set at the bottom.

3. Heat preservation material
Polyurethane foaming heat preservation with thickness of 100mm for heat preservation of top, bottom and tank body.

4. Tank body size
Depending on volume, 1/3 jacket layer at the lower part.

5. Tank body accessories
One side manhole at the tank bottom
One safe ventilating cover at the top with water pipe for connecting with water disc
One double-T type CIP spray head at the top
One thermometer, with temperature display range of 0℃～100℃
One aseptic sampling valve
One horizontal blender (4kw, 960r/min, ABB motor)
Two inlets and outlets of ф63.5mm
One high, medium and low liquid level alarm
One pressure sensor (E+H)
One medium inlet ofф38mm and one medium outlet of ф38mm
One base
One tank connecting with indoor milk warehouse
One stainless steel ladder with guard rail at the tank top
Volume varies from 15000L to 150000L
Products of special specifications, dimensions and requirements can be customized according to customer requirements.
Form of blender, rotation speed and motor can be customized according to customer requirements.
