Application field
Usually is used for storage water tank, storage liquid tank, temporary storage tank, etc.
Suitable for such fields as dairy, juice, beverage, medicine chemical or bio-engineering project, etc.

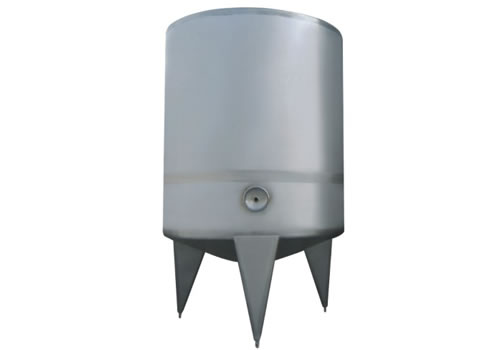

Structure
Single layer structure
Material of tank is stainless steel
Tandard scheme
Quick open manhole
Numeral indication type thermometer
T type cleaning head
Hauling lever style releasing valve
Adjustable taper branch feet.
Application field
Used for rawness milk tank, processed milk tank, mixing tank(without eating), temporary storage tank, waiting for filling tank, etc.
Technical Parameter
| Model | Normal volume(L) | Diameter(mm) | Hight(mm) | Diameter of inlet outlet |
| SSG -600 | 600 | 900 | 2140 | 38 |
| SSG -1 | 1000 | 1050 | 2380 | 38 |
| SSG -1.5 | 1500 | 1180 | 2550 | 38 |
| SSG -2 | 2000 | 1340 | 2760 | 51 |
| SSG -2.5 | 2500 | 1420 | 2940 | 51 |
| SSG -3 | 3000 | 1540 | 3050 | 51 |
| SSG -3.5 | 3500 | 1600 | 3180 | 51 |
| SSG -4 | 4000 | 1650 | 3200 | 51 |
| SSG -5 | 5000 | 1780 | 3250 | 51 |
| SSG -8 | 8000 | 2100 | 3900 | 51 |
| SSG -10 | 10000 | 2300 | 4050 | 65 |
| SSG -15 | 15000 | 2650 | 4450 | 65 |
