Home » Machinery » Sterilization Equipment » Continuous water soaking sterilizer

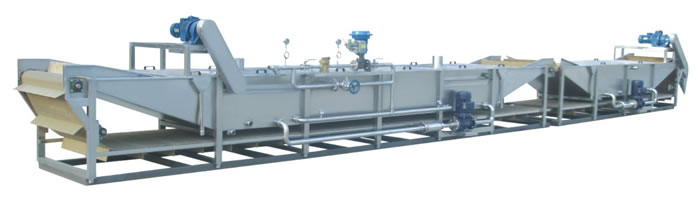

Continuous water soaking sterilizer

Continuous water soaking sterilizer
Inquiry

Description Of The Product
The sterilizer is new desiqned on the basis of absorbing technology of same produces in Japanese light industry it is specially applied for the twice sterilization of dairy, beverage and jelly the parts contacting packing products are all made of SUS304 stainless steel, and the large chain board and chain wheel adopt sane materials .It has the functions of anti-acid , anti-alkali, anti-corrosion. The water tank is headed by steam, and the steam volume is automatically controlled by steam solenoid valve. The hot water can be made full use of .The whole machine has such characteristics as reasonable design, fine manufacturing, stable operation and beautiful.

Technical Parameter
Produce cappacity 1-5T/H
Sterilizing temperature < 98℃ It can be ste to order
Sterilizing time 10-35 minute speed infinitive adjusting
Cooling temperature 20℃
Cooling time 10-25 minute speed infinitive adjusting
Steam pressure 0.4 Mpa
Link bekt time 0.17 -10m/min speed infinitive adjusting
Centrifuge blower fan 3kw
Compete weight About 6000kg
Outline dimension 1600x2600x 2000 mm
