Description

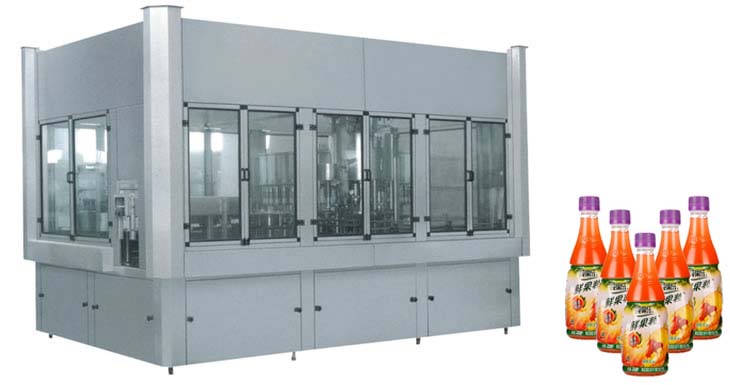

The series equipment is used in hot filling and sealing of green tea, black tea, wulong tea and fruit juice.The machine integrates washing , filling, capping together.The design is scientific and reasonable.Its appearance is beautiful.Its operation and maintenance is convenient.It is good eauipment for choosing hot drink filling machine.
Technical Parameter
| Model | HGF | HGF18-18-6 | HGF24-24-8 | HGF32-32-10 | HGF40-40-12 |
| Production capacity (600ml)(b/h) | 3000 | 6000 | 10000 | 14000 | 18000 |
| Filling precision | >± 5MM (Liqid level) | ||||
| polyester bottle standard(mm) | Bottle diameter:∮50-∮100 Heigh:150-320 | ||||
| Suitable cap shape | Plastic screw cap | ||||
| Water pressure of washing bottle(Mpa) | 0.18 | ||||
| Water consumption of washing bottle(Mpa) | 800 | 1600 | 2500 | 3500 | 4500 |
| Spraying position | 5 | 5 | 6 | 12 | 20 |
| Dripping position | 3 | 3 | 3.5 | 7 | 14 |
| Gas source pressure(Mpa) | 4 | ||||
| Gas consumption(m3/min) | - | 0.3 | 0.4 | 0.5 | 0.6 |
| Power(kw) | 4.23 | 5.03 | 6.57 | 8.07 | 5.6 |
| Weight(kg) | 2500 | 3000 | 4000 | 5000 | 6000 |
| Size(mm) | 2300x1550 x2500 | 2640x1800 x2500 | 3000x2000 x3150 | 3600x2800 x3150 | 4500x3400 x3150 |
