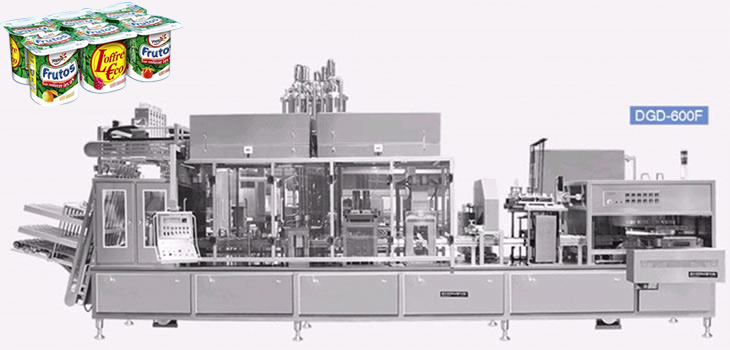

Fully-automatic cup forming filling sealing machine

Fully-automatic cup forming filling sealing machine
Inquiry

The main features
The DGD series machines are applicable to the packagking production of yogurt, milk beverage, seansoning etc. With the function of accomplishing paper cup or plastic cup loading, filling lid placing, sealing, date printing, covering and product transportation full-automaticlly. These are equipped with world famous top brands system. This series machines, which have the optional systems of 100-class laminar flow protection, fruit particle and essence dynamic mixture, high-temperature filling and mobile code print etc, Are the first choice for high-effciency, energy saving and full-automatic production.

Technical Parameter

Model DGD-600F DGD-300F DGD-200F DGD-100F
Output 2000 c/h(150ml) 10000 c/h(150ml) 6600 c/h(150ml) 3000 c/h(150ml)
Operation Mode Linear Step Rotary Step
Preformed Cup Type Plastic cup, Paper cup
Lid Type Precut lid, Rolling Film
Total Power 18 kw 9 kw 7 kw 4.5 kw
Operating Power 10 kw 5 kw 4 kw 2.2 kw
Working Air Pressure 0.7 Mpa 0.7 Mpa 0.7 Mpa 0.7 Mpa
Air Consumption 1.5  3m/min 1.1  3m/min 0.9  3m/min 0.5  3m/min
Overall Dimension 9300 x 3750 x 4000 4200 x3000 x 2880 4200 x2900 x 2880 2900 x 2100 x 2750
Weight Approx 6 t 3.2 t 2.6 t 1.8 t
