Description

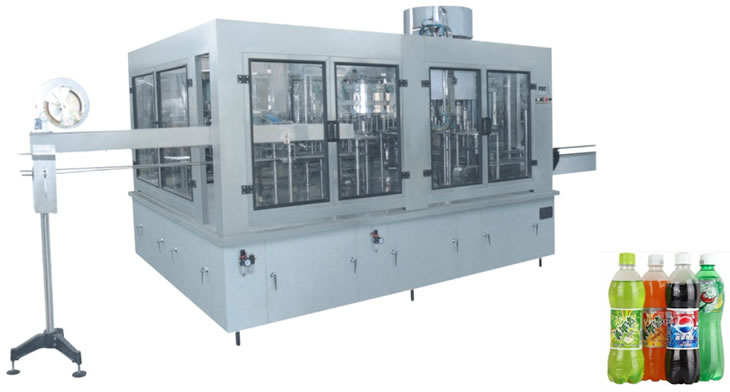

The series of machines are the integrated rinsig. filling and capping machine, suitable for filling various PET bottled carbonatd beverages.
Technical Parameter
| Model | CGF | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Production capacity (600ml)(b/h) | 3000 | 5000 | 10000 | 14000 |
| Filling precision | >± 5MM (Liqid level) | |||
| Filling pressure(Mpa) | <0.4 | |||
| polyester bottle standard(mm) | Bottle diameter:∮50-∮100 Heigh:150-320 | |||
| Suitable cap shape | Plastic screw cap | |||
| Water pressure of washing bottle(Mpa) | 0.18-0.25 | |||
| Water consumption of washing bottle(Mpa) | 1300 | 2000 | 3000 | 4000 |
| Spraying position | 5 | 7 | 12 | 20 |
| Dripping position | 2.5 | 3.5 | 7 | 14 |
| Gas source pressure(Mpa) | 0.6 | |||
| Gas consumption(m3/min) | 0.3 | 0.4 | 0.5 | 0.6 |
| Power(kw) | 5.03 | 6.57 | 8.07 | 10.07 |
| Weight(kg) | 3000 | 4000 | 5000 | 6000 |
| Size(mm) | 2460x1650 x2500 | 26400x1800 x2500 | 3000x2000 x3150 | 3600x2800 x3150 |
